APC BackUPS,
from 2000 baht up |
 |
Cheap UPS,
price around 2000 baht |
Case and chassis: sheet metal. Provides good heat dissipation, prolonging the life of the battery. In case of the fire inside, gives some fire proofing.
|
|
Case is made of thick plastic. Poor heat dissipation leads to overheating, which damages the battery. Fire unsafe (plastic melts and burns). No common ground inside. |
| |
|
|
 |
|
 |

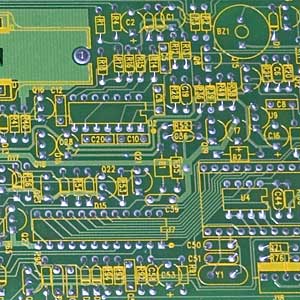

| Printed circuit board as it should look like |
|

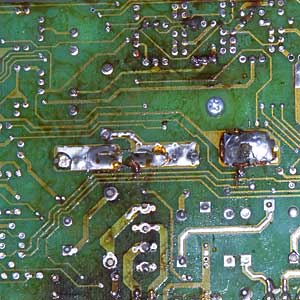

No, that's not a damaged UPS - that's a soldering quality... Somebody forgot to remove the flux... |
| |
|
|
 |
|
 |

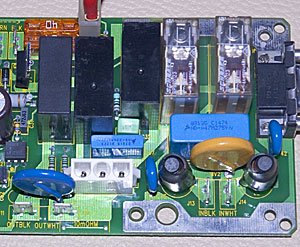

Classic filter and surge suppressor.
MOV, 2 coil Inductors, hot-neutral capacitor and 2 capacitors to the ground.
Relays disconnect both hot and neutral wires.
|
|

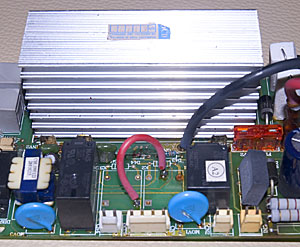

MOVs only? Relays missing? I wonder how did the developers know which wire is the hot one? What if the user reverse the plug with 2 pins?
With this poor schematics MOVs will degrade quickly. |
| |
|
|
 |
|
|
| Simple Push-To-Reset circuit breaker on the back side |
|
|
